Basic Info.

Model NO.	UHF Antenna ST-AN1201V
Interface	Serial Port, Wiegand26, TCP/IP
Reading Distance	>10m
Application	Parking, Hospital, Company, Bank, Store
Protocol	ISO18000-6b/6c(EPC C1g2)
Frequency	865~868MHz, 902~928MHz (EU&Us )
Gain	12dBi
Polarization	Circular
Transport Package	Package Size: 480*480*55mm
Specification	size: 450*450*40mm
Trademark	Focus RFID
Origin	Shenzhen
HS Code	8471900090
Production Capacity	10, 000, 000 PCS/Year

Packaging & Delivery

Package Size63.00cm * 51.00cm * 61.00cm Package Gross Weight38.000kg

Product Description

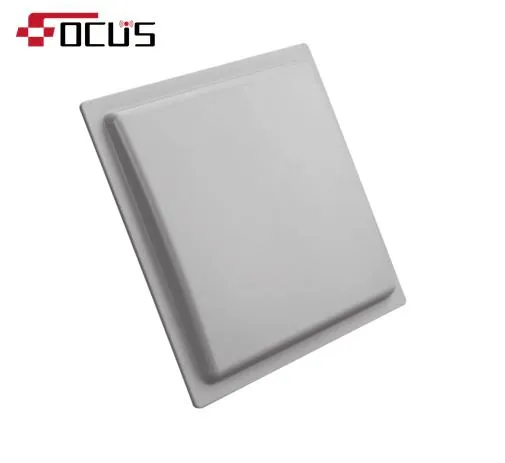

UHF Vertical/Circular 12dbi AntennaModel Number: ST-AN1201VGeneral DescriptionsST-1201V is high performance UHF circular 12dBi antenna and the reading distance up to 10 meters. It is widely used in RFID system such as logistics, vehicle access control, and anti-counterfeit and industrial production process control system.Technical Specifications

Model	ST-AN1201V
Electrical specifications
Frequency range (MHz)	902-928Mhz,865~868Mhz
Polarization	Horizontal or Vertical
Gain(dBi)	12dBi
Half-power beam width(°)	Hor:40 Ver:40
Front-to-back ratio(dB)	≥25
Impedance(Ω)	50
VSWR	≤1.3
Maximum input power(W)	50
Lightning protection	DC Ground
Mechanical specifications
Connector	N-female
Connector position	Bottom
size(mm)	450*450*40mm
Packing size(mm)	480*480*55mm
Antenna weight(kg)	2.5kg
Packing weight(kg)	4kg
Wind loading area(m2)	≤0.2
Rated wind velocity(m/s)	60
Reflector material	Aluminum
Material	ABS
Color	White
Operating temperature(ºC)	-40~70
Mounting hardware(mm)	Ф40~50
