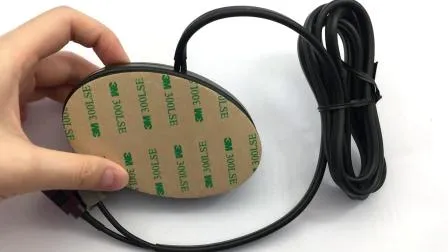

Customizable Oval High Gain Low Power Consumption GPS&Lte Combo Antenna

Customizable Oval High Gain Low Power Consumption GPS&Lte Combo Antenna

Antenna technical parameters Amplifier characteristics Return Loss 1.Q: Are you a manufacturer? A: Yes, our company has
Basic Info.
Model NO. GKZS-GPS<EZH-GT5ZM1.5&FAKRAZM1.5-G
Sturcture Form Surface Antenna
VSWR ≤2.0
Amplifier Gain 26±3dBi
Connector Fakra Gt5
Cable Rg174 with Protective Layer
Usage Communication Antenna, Car Antenna
Usage Occasion Base Antenna
Operating Wavelength Microwave
Dimensionality Two-Dimensional Antenna
Transport Package Plastic Bags in Carton
Specification 102x66x21mm
Trademark Gkant
Origin Guangzhou China
HS Code 8529109090
Production Capacity 5000000PCS/Month
Product Description
Antenna technical parameters
Amplifier characteristics Return Loss

Customizable Oval High Gain Low Power Consumption GPS&Lte Combo Antenna

Customizable Oval High Gain Low Power Consumption GPS&Lte Combo Antenna

Customizable Oval High Gain Low Power Consumption GPS&Lte Combo Antenna

Customizable Oval High Gain Low Power Consumption GPS&Lte Combo Antenna

Customizable Oval High Gain Low Power Consumption GPS&Lte Combo Antenna

1.Q: Are you a manufacturer?
A: Yes, our company has nearly 30 years of professional experience dealing with wireless communication and develop ,produce and sale satellite communication products professionally

2.Q: How do I get samples?
A: Please send us the item link you need and your shipping address,we will check the shipping fee and confirm with you.After we receive the fee,we will send in 3-5 days by express.Some samples will charge sample fee, please confirm with us at first.

3.Q: How to make an OEM order?
A: 1. After communication, the buyer and the seller reach an agreement on product details, packaging, purchase quantity, unit price, delivery terms and payment terms.
2. The buyer sends a formal PO (purchase order) or the seller sends a formal PI (performance invoice) with detailed terms and conditions.

4.Q: What are your payment terms?
A: For samples: small batch orders or urgent orders, you can choose PayPal, Western Union, MoneyGam, Escrow to facilitate buyers, 100% payment before shipment; for large orders: 30%/50% of T/T as deposit, The balance before shipment.

5.Q: How long is your delivery time?
A: For example: usually 7-15 working days after receiving your 100% payment.
For bulk orders: 15-35 working days after receiving the deposit.

6.Q: How about the warranty?
A: We can provide 1 year warranty.

7.Q: How do you solve after-sales service problems?
A: After receiving the goods, if you have any dissatisfaction or other problems, please contact us as soon as possible, we will give you a quick and reasonable solution, thank you very much!

8.Q: If we want a special appearance and function increase, can we get support?
A: No problem! Our R&D team will support you to develop a new and best product for you!

Design Specifications Typical
Working Frequency 1575.42MHz 824-960MHz, 1710-2170MHz, 2300-2690MHz
Gain ≤3.0dBi ≤3.2dBi
Antenna efficiency 40% 30%
VSWR ≤2.0 ≤2.5
Ploriaztion Right-Handed Circular Pol L Pol
Axial Ratio ≤3.0 /
Radiation pattern Directional Directional
Impedance 50Ω 50Ω
Power handling 33dBm 33dBm
Interface GT5 RG174-1.5M FAKRA-D RG174-1.5M
Overal dimensions 102x66x21mm
Weight 100g
Operatin Temp -40ºC~85ºC
Storing Temp -40ºC~85ºC
NO Item Specifications
1 Frequency Range 1575.42±5MHz
2 Amplifier gain 26±3dBi
3 V.S.W.R ≤2.0
4 Noise Figure ≤2.0
5 DC Voltage 3~5V
6 DC Current ≤20
